Building a Windows Phone 7 CRM client

This Christmas I decided to treat myself by buying a new Windows Phone 7 (WP7).  Since I have my family on the T-Mobile network, I chose the HD7 phone from HTC.  While I find this phone a little too large to use comfortably in one hand, the large screen is great for gaming and media applications.  I have an Xbox Live family subscription, and the Xbox Live integration lets me check on what my family is doing on their Xboxes, send messages directly to the game consoles, and check on any game invites or turn notifications I might have received.  I’m patiently waiting for Fable Coin Golf to be released for WP7 so that I can earn money for my Xbox Fable III character through the phone.

While I think the iTunes application is more polished and easier to use than the Zune software, the subscription model followed by the Zune certainly makes building a large music library quickly much cheaper.  I don’t typically watch Netflix on my WP7, but I do watch a number of podcasts.  These both look and sound great through the HD7.  For this reason, I’ve replaced my iPod Touch with my WP7.  A tip for anyone using HTC phones, download the HTC Sound Enhancer application from the marketplace.   It makes a big difference in the sound quality, especially when using headphones.  Also, HTC’s YouTube browser is much better than any of the others on the marketplace.

Games and media aside, I have been pleasantly surprised at just how productive I have been on the WP7 in a very short period of time.  Through the people hub I can search my company’s Exchange global address book and can save contacts from there to one of my personal address lists.  The contact information from Outlook, Windows Live, Google and Facebook are seamlessly integrated into a single display.  I have my family contacts pinned to my start screen, and in addition to giving instant access to call or text them, I can also see any social status updates they have made right on my start screen.

The Office hub lets me open and edit any office document and post it to SharePoint if desired.  The SharePoint integration works great, although oddly enough it does not work if the server only supports Windows authentication.  Since getting the WP7, OneNote has actually became useful again.  My notes taken on the phone are automatically uploaded to my Windows Live SkyDrive.

The most notable absences in the WP7 are CRM and Office Communicator.  Microsoft has announced that the Lync (Office Communicator's successor) for WP7 is in the works, and the list of features includes messaging, VOIP calling, conference calls and seamless call transfers from the desktop to the phone.

While I’m certain that Dynamics CRM integration is also in the works, I naturally couldn’t wait.  My organization isn’t yet on CRM 2011, so I built a client against our on premise CRM 4.0 deployment.  The related code for this project can be downloaded here.  In order to get it to work, add a service reference to the CRMMobileClient project to your CRM deployment and name the service reference CrmService.

The first issue to overcome in building a CRM client was how to reference the CRM web services.  There isn’t a CRM mobile SDK yet, and the WP7 does not support the older style web service client suggested for accessing the CRM web services.  This leaves using a WCF client to access the web services as the only option.  But after adding the service reference to the Silverlight project, there are several missing attributes to the generated proxy class.  Most notably the generated service does not have a CrmAuthenticationTokenValue property.

Fortunately a lot of the research had already been done for me by Pierre-Adrien Forestier in his blog post How to consume CRM 4.0 Web Services from a WCF client like Silverlight applications.  This blog post describes how to add the CrmAuthenticationToken header to the outgoing requests using the OperationContextScope and a custom serializer class.   Since the WP7 development platform allows for Silverlight applications, this code seemed ideal.  Unfortunately as written it only works when using Windows integrated authentication.  There isn’t a way to pass Windows credentials on the WCF transport from the WP7, so using Windows authentication is not an option.  Basic authentication must be used on the CRM IIS server in order to access it from phone applications.  Using the TransportCredentialOnly security mode you can simply set the id and password on the client credentials object and with the custom serializer you will be able to access the CRM server over HTTP.

System.ServiceModel.BasicHttpBinding binding = new
 binding.Name = "CrmServiceBinding";

service.ClientCredentials.UserName.UserName = "username";
service.ClientCredentials.UserName.Password = "password";

Unfortunately, this only works over HTTP; executing this code over HTTPS will generate an error.  The next hurtle was how to use Basic authentication securely.  Using a secure connection is recommended since Basic authentication passes the id/password in clear text, but there isn’t a built in way to pass Basic authentication credentials from the WP7.  Normally you would use code similar to the following:

System.ServiceModel.BasicHttpBinding binding = new
 binding.Name = "CrmServiceBinding";
 binding.Security.Mode = System.ServiceModel.BasicHttpSecurityMode.Transport;
 binding.Security.Transport.ClientCredentialType =

Unfortunately, Silverlight does not expose the Transport property of the BasicHttpSecurity object so there is no way to configure the client proxy to automatically add the Basic authentication header to your requests.  To implement Basic authentication over HTTPS you must manually add the required header to the request in a similar fashion to adding the CrmAuthenticationToken.  The following code demonstrates.
public void AsyncGetContact(Guid contactId)
    using (new OperationContextScope((IContextChannel)Service.InnerChannel))
        string myCredentials = Convert.ToBase64String(Encoding.UTF8.GetBytes(UserName + ":" + Password));
        // You can't configure the authentication in the transport, so the basic
        // authentication header has to be added here.
        HttpRequestMessageProperty prop = new HttpRequestMessageProperty();
        prop.Headers["Authorization"] = "Basic " + myCredentials;
            HttpRequestMessageProperty.Name, prop);
        // here, we inject the CRM Authentication header
        // The Xml formatter is just to prevent some characters from being encoded
        // (otherwise CRM can't parse the authentication token properly)
        MessageHeader header = MessageHeader.CreateHeader("CrmAuthenticationToken",
            new MyCrmAuthenticationTokenSerializer(0, Organization, null));
        // Insert SOAP header

        // Create the column set to retrieve
        ColumnSet cols = new ColumnSet();
        cols.Attributes = ContactEntity.ColumnList;

        // Create the retrieve target.
        TargetRetrieveDynamic targetRetrieve = new TargetRetrieveDynamic();
        // Set the properties of the target.
        targetRetrieve.EntityName =;
        targetRetrieve.EntityId = contactId;
        RetrieveRequest req = new RetrieveRequest();
        req.ColumnSet = cols;
        req.ReturnDynamicEntities = true;
        req.Target = targetRetrieve;

Another item you might notice in the above code is that it uses the Execute method and DynamicEntity rather than the Retrieve method and the custom contact entity class.  For a line of business application, using the generated entity classes isn’t an issue, but I wouldn’t recommend it if you plan to distribute your application on the marketplace.

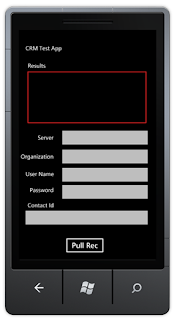

To test my client class I built a small test application.  This application simply allows you to enter the server, organization, user name, password, and the GUID of a contact you wish to retrieve from CRM.  This wouldn’t be overly useful for a LOB application, but does work to insure that the CRM system can be successfully queried.

An interesting anomaly I found when building this application is that the initial connection to the web service takes much longer than subsequent queries (from 8 to sometimes 30 seconds).  Stranger still is the fact that even though the call is asynchronous, rather than return immediately as expected, several seconds pass as the call is invoked.  After doing some research I’ve found that this is typical of WCF clients and that two reasons are usually the culprit.  The first is related to the client attempting to connect to a proxy before making the web service connection.  It’s doubtful that this would be the case on the WP7, and hopefully it isn’t as neither useDefaultWebProxy nor bypassProxyOnLocal are accessible to alter this behavior.   The second possible cause has to do with XML serialization.   According to the startup speed of a WCF client can be improved by using the svcutil.exe tool to generate code to serialize the xml.  Unfortunately this tool does not work with Windows phone assemblies, but I'm confident that serialization code can be created by including the classes in a traditional .Net assembly, using the tool to generate the serializtion classes, and then adding these classes back to your WP7 project.   I have yet to attempt this experiment, but will be sure to post an update when I do.

To work around this issue in the UI, make sure that you call the service code from a different thread.  While it seems odd to call an asynchronous method from another asynchronous method, not doing so causes a noticeable delay as the service asynchronous call is launched.

While WCF and REST services are becoming quite widespread, there are still a number of applications that work using older style web services.  While some of the challenges to connecting to Dynamics CRM are unique, most of the issues are typical of connecting to web services.  I hope this blog entry gives some useful tips to anyone out there struggling to get their own connected applications to work properly.
